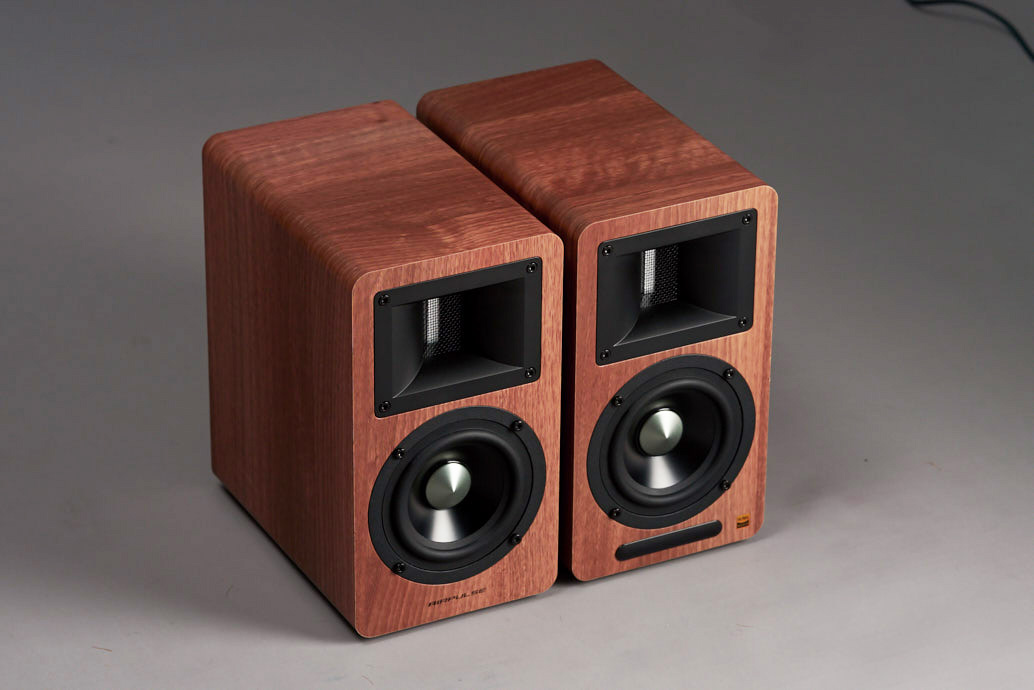

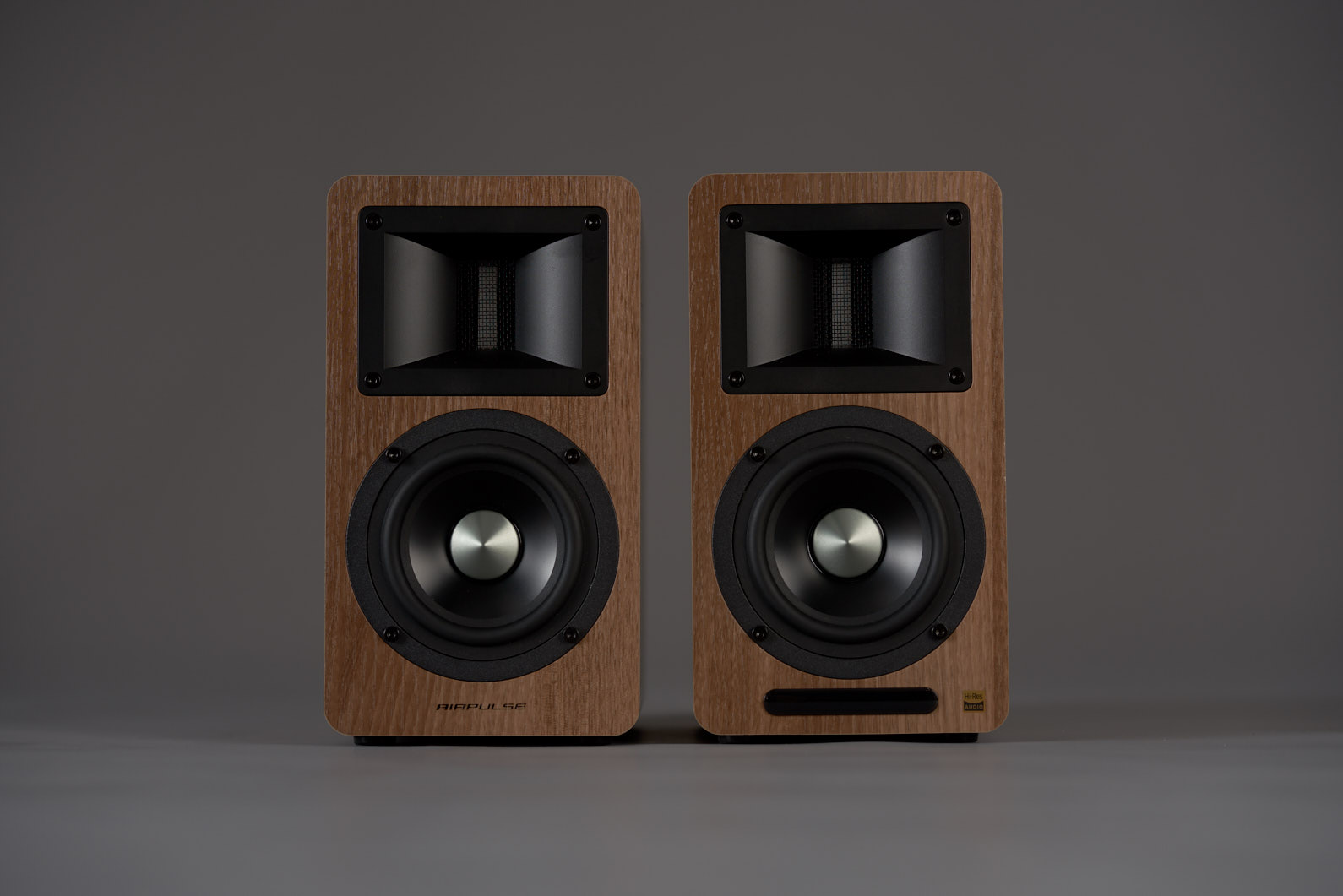

A80 Active Speaker

The A80 is AIRPULSE introduction to plug & play Hifi. Designed to appeal to a younger audience through its ease of use, multiple connections and functionality, this beautiful walnut finish speaker boasts high end & hifi components at affordable pricing. The A80 active speaker is the ideal entry into hifi listening.

...
  • ...
  • ...

Following the successful launch of the A200 and A300, the all-new A80 diminutive bookshelf speakers with a 4'5” aluminum cone ferrite magnet woofer now join the Airpulse active speaker family. The perfect combination of Hi-Res digital audio processing technology and a youthful sturdy system that pays homage to hifi speakers of old, the A80 is a High-Fidelity audio system with intoxicating sound quality and immense visual appeal. The A80 adopts its sound characteristics from our flagship model the 7001 near-field monitor speakers designed by Phil Jones. Using the same XMOS core as its older siblings, this unassumingly basic cabinet delivers outstanding performance beyond expectations.

...

Horn Loaded Ribbon Tweeter

The A80 horn-loaded ribbon tweeter continues in the tradition of the flagship 7001 near-field monitor speakers. The thin aluminium ribbon diaphragm has high sensitivity, superb transient response, extended frequency range, and well-defined resolution, perfect to meet any music you play head on. The meticulously formulated horn shape produces directional and optimized high frequencies from the ribbon tweeter, so they are aimed at the listeners, minimizing unwanted effects from room reflection. This also leads to superior imaging of the speaker. The result is unequivocally full and three dimensional sound with each detail well defined.

...

4.5” Aluminium Cone Ferrit Magnet

The Mid-woofer is a 4.5” unit with a hard anodized aluminum alloy cone suspended in a heavy, ultra rigid cast magnesium alloy frame. The proprietary aluminium alloy cone was designed through a meticulous process analysing different types of cone geometry and materials using a Klippel Laser Doppler Interferometer. The 35mm diameter voice coil is larger than most loudspeakers of this size. It has been shown that larger voice coils have less power compression because they run at a cooler operating temperature. Sonically this means a more realistic dynamic representation of the music. It is dynamics in music that gives it emotion and exhilaration. The cooler running temperature of the voice coil also has the side benefit of a more reliable loudspeaker since cooler voice coil means much less chance of speaker failure.

  • ...
  • ...
  • ...
  • ...
  • ...
  • ...
  • ...
  • ...
...

Fully Digital Amplifier

The power amplification part is built with 2 pieces of TAS5754 Class-D amplifier from Texas Instruments. This component is one of a handful of Class-D amplifiers on the market which combines high input sample rate support and high output PWM carrier frequency. These two characteristics are essential to achieve low background noise and low distortion. The up-to 192 KHz input sample rate support guarantees the entire link for digital processing run without any change in sample rate signal. Its 768 KHz output PWM carrier frequency, double the typical 384 KHz found in traditional Class-D amplifiers, is more suited to driving the highly sensitive ribbon tweeter. One TAS5754 is connected in bridge mode to the left and right channel woofer while the other amp is connected in bridge mode to the left and right channel ribbon tweeters.

Other Features

... Supports Input Sample Rate up to 192 KHz
... Hyper-Rigid Cast-Magnesium Alloy Frame Woofer
... Internal Wiring by TRANSPARENT
... 18-mm thick high strength MDF
... Qualcomm’s Bluetooth V5.0 chipset CSR8645
... 2x 384 KHz Traditional Class-D amplifier

Specifications

Net Weight
9.3 Kg(20lbs)
Mid-Woofer
4.5inch Aluminium ferrite magnet
Gross Weight
9.3Kg (20lbs)
Cabinet Size (WxHxD)
140x250x220mm
Tweeter
Horn Loaded Ribbon Tweeter
Signal-Noise Ratio
L/R:≥90dB(A)
Input Mode
AUX, PC, USB, Optical, Bluetooth.
Amplifier System
Digtal Amplifer With Xmos Processor
Sample Rate Input Sensitivity
AUX: 450± 50mV | PC: 550±50mV | USB: 400±50mFFs | Optical: 400±50mFFs | Bluetooth: 450±50mFFs
Power Output
100W RMS (40w x 2+10W x 2)
Packing Size(HxWxD)
160 x 283 x 255 mm
Mains Voltage
100-240 V AC/50-60 Hz
Frequency Range
52Hz-40KHz
Color
Walnut
